Order Information
| Model | Max. Output | Power | Part Number |
| PTC-P100 | 600W | 110V | 01C131 |
| PTC-P100 | 1200W | 220V | 01C132 |
If bulk requirement, please contact us for quotation.

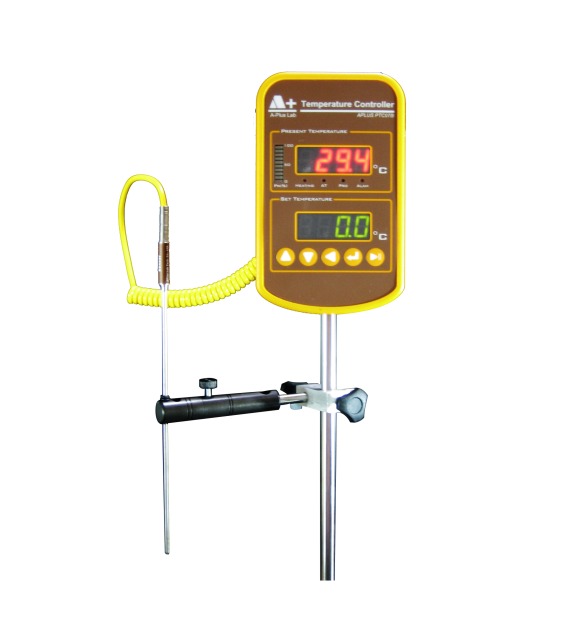

The digital controller APlus designed can not only be linked to magnetic stirring hotplate (HPC07SA), but also works independently with commercial available heating apparatus. User can control temperature to either inside or outside reaction bottle according to one’s need.
Features:
● LED-indicated temperature display provides easy-to-read.
● PID control provides precise temperature control.
● It can be linked to APlus advenced magnetic stirrer with heating (HPC07SA).

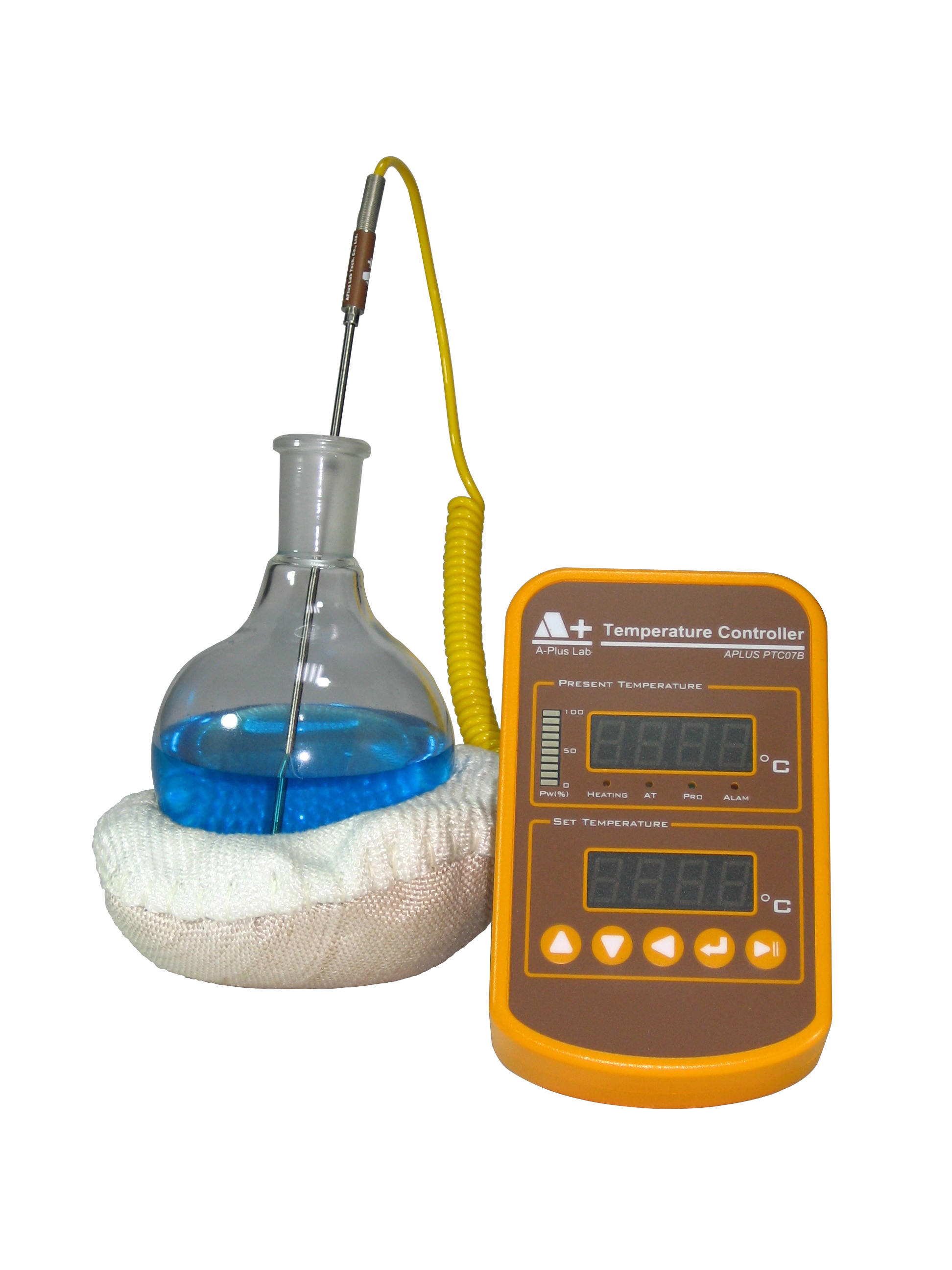

● With a plug adapter, it can control temperature of heating mantle.
● Safety warning function: Once temperature is higher than set temperature difference, it utters warning
sound and cut off the power supply to heating apparatus.
Specification
|
Control Range (oC) Probe Range (oC) |
ambient~250 (suggested) -10~350 |
||
| Control Mode/ Probe Type | PID/Pt | ||
| Temp. Stability (oC) | 1 | ||
| Commercial Heating Output (W) | 600/110V; 1200/220V | |
The digital stirring hotplate package consisting of :
● PID temperature controller PTC07B-P100
● Temperature sensor PTC-TS-TCSC (Pt type/Stainless 20cm)
● Temperature probe clamp PTC-SA-B
● Support rod PTC-SA-C
● Head Clamp PTC-SA-D

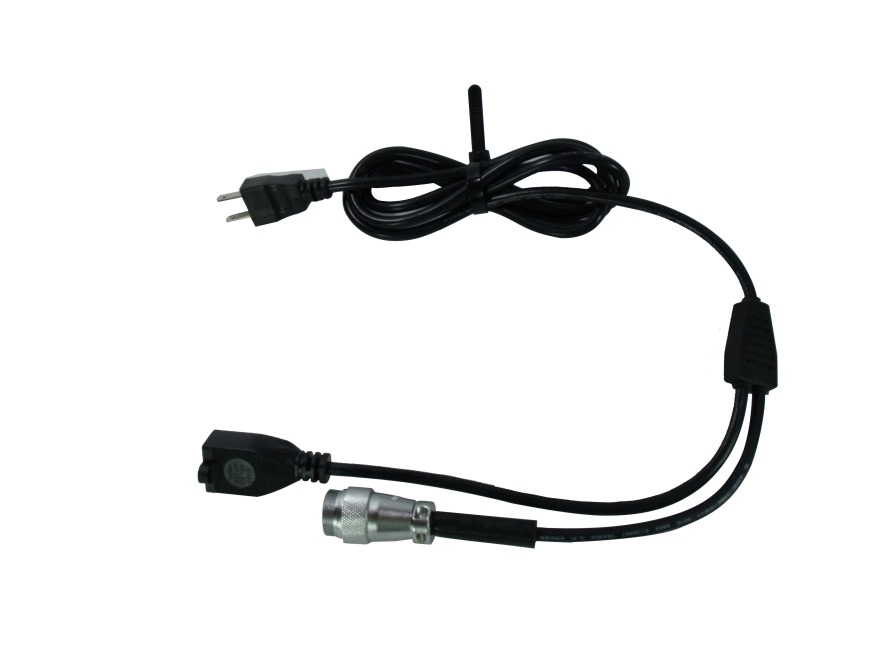

● Plug Adapter PTC-CB-A
